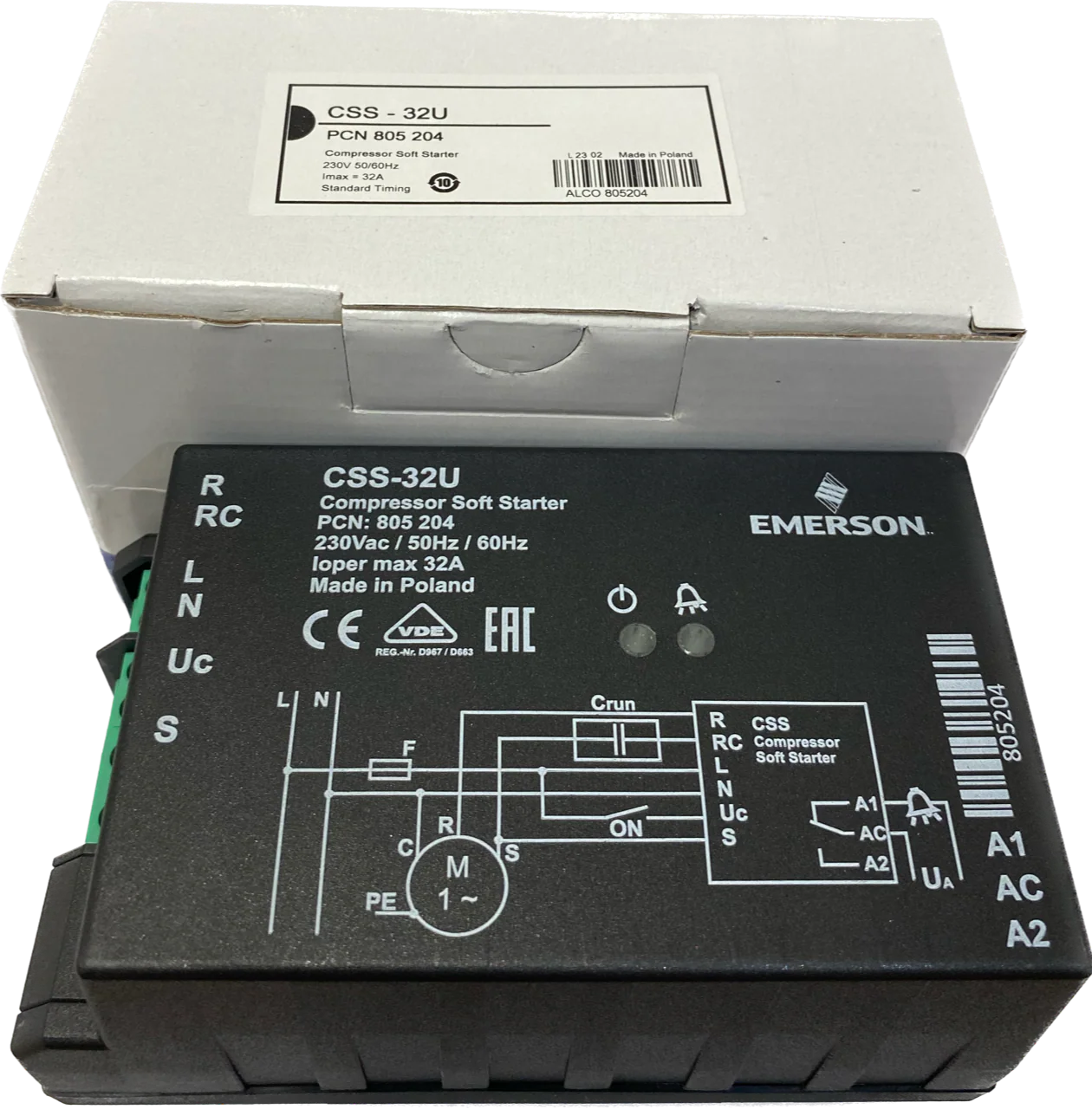

CSS- 32U Emerson Soft Start Module For Compressors - Single Phase (230v) 32Amp

Can be used with Kensa, Danfoss, Thermia, NIBE, Steibel-Eltron, Grant and Dimplex Heat Pumps.

• Compressor Soft Starters of the CSS-Series are used to limit the start current of1-phase compressors.
• For additional start torque a built-in start capacitor is switched in parallel to the run rapacitor. After start it is switched off.
• Supply voltage is continuously monitored. In case of undervoltage the compressor is switched off.
• Restarts are delayed and indicated by a blinking greed LED.
• In case of alarm a signal is indicated by the red LED. The alarm relay will be activated.

• Locked rotor recognition and shutdown
• Thyristor protected contactor for long life
• Self-diagnostics
• Mounting clip for easy installation allows DIN rail mounting in two directions
• Easy connection by cage type screw terminals wire Ø 4mm
• CSS-32U for compressor motors with nominal current of 32A max.
• Certified to EN60335-1, EN60335-2-40, EN60947-1, EN60947-4-2
